Wuxi FEM Machinery Science & Technology Co., Ltd.

We shape the wire the world runs on.

TC · PCD · ND · CVD wire & pipe drawing dies, wire drawing machines and drawing compounds — engineered in Wuxi, China, and delivered to wire & cable producers across the Middle East, Africa, Southeast Asia and beyond.

Explore Products → Get a Quote

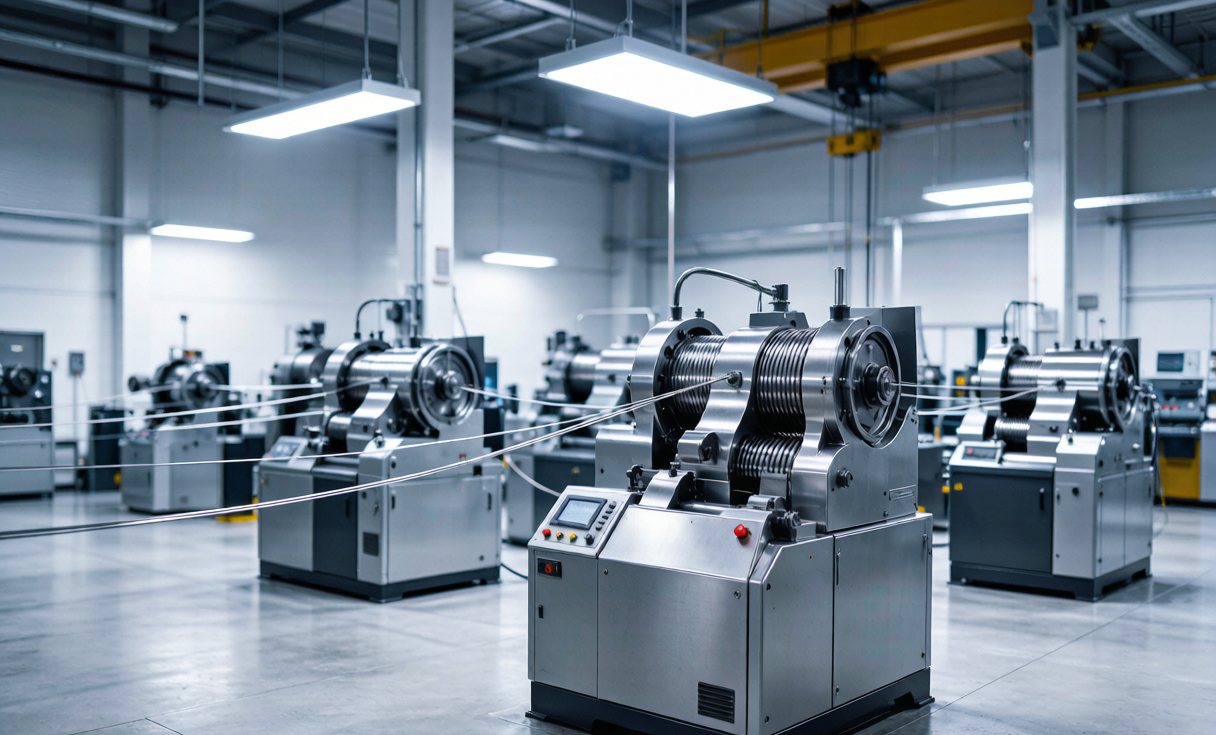

Modern wire drawing production floor at FEM Machinery
TC · PCD · ND · CVD Ø 0.015 – 20 mm typical range Since 2017 · Wuxi, China
01 About FEM

A dedicated partner to the wire & cable industry

Wuxi FEM Machinery Science & Technology Co., Ltd. is located in Wuxi, Jiangsu — one of China's most important wire machinery manufacturing hubs by Taihu Lake. Since 2017, we have focused on one mission: supplying wire & cable producers with reliable consumables and equipment that keep their lines running.

  • One-stop supply — from precision dies to complete drawing lines
  • Full range of TC, PCD, ND and CVD die blanks in stock for fast delivery
  • OEM & ODM customization — sizes, casings, profiles and packaging
  • Export experience across the Middle East, Africa and Southeast Asia
View Our Products →

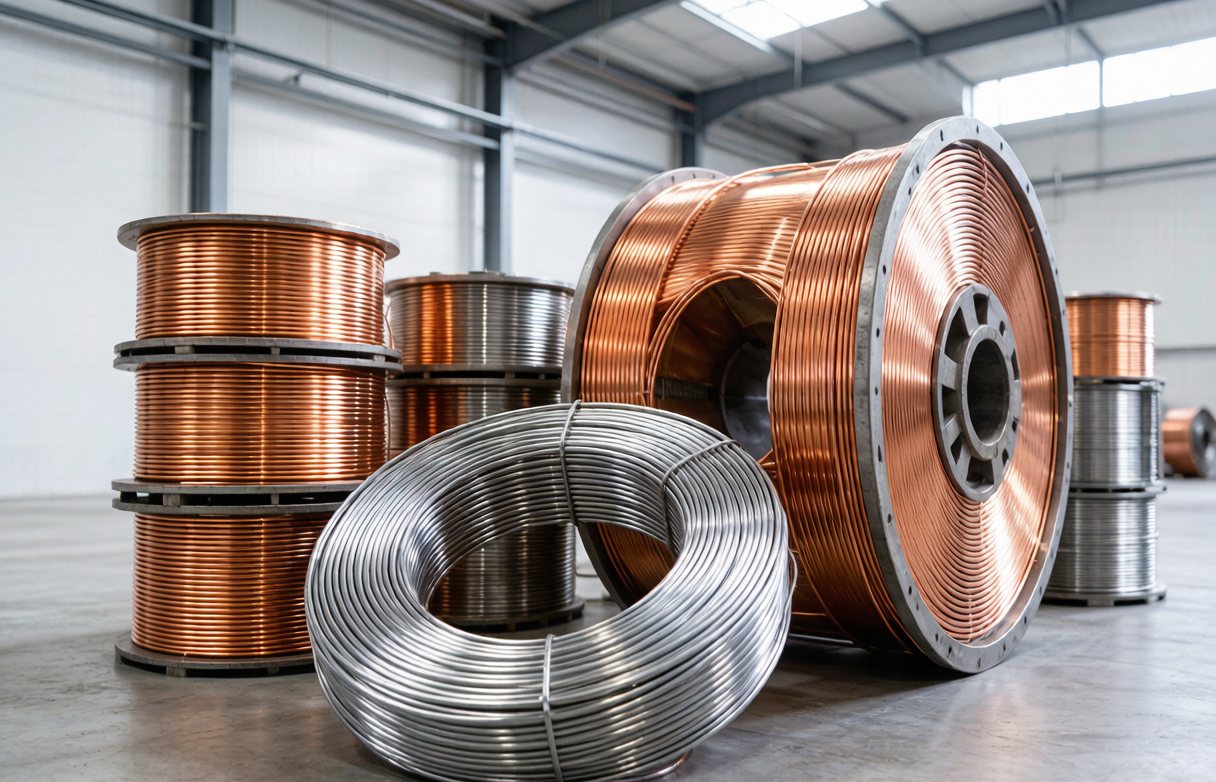

Finished copper and steel wire coils
Straight-line wire drawing machine for high carbon steel wire
Wuxi · Jiangsu Taihu Lake, China
2017Year Established
3Core Product Lines
20+Export Markets
100%Outgoing Inspection
02 Product Lines

Three product lines.
One standard: precision.

Dies, machines and lubricants are designed to work together — extending die life, improving wire surface finish and keeping your production stable.

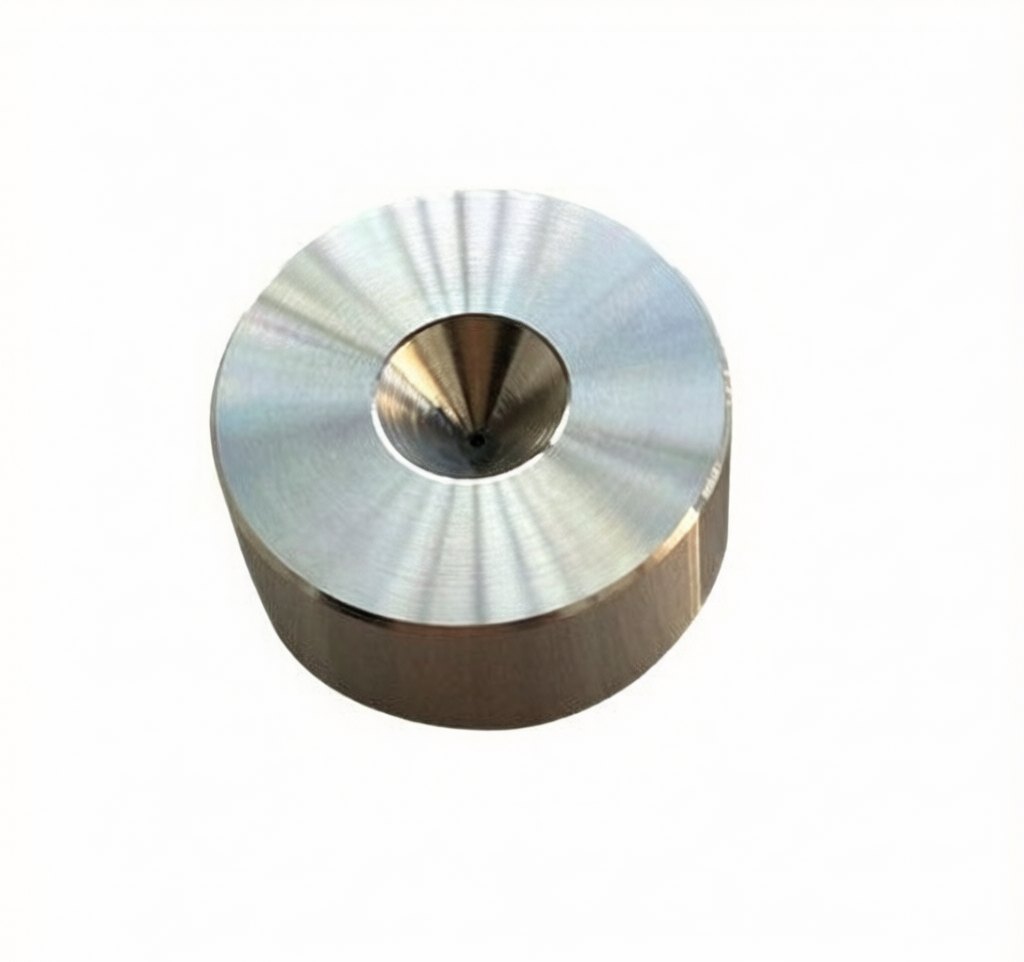

PCD and natural diamond wire drawing die with polished casing Wire · Pipe · Bar
Drawing Dies

TC / PCD / ND / CVD Wire & Pipe Drawing Dies

From heavy carbon steel rod to ultra-fine enamelled wire — we produce round, shaped, stranded, enamelling and pipe drawing dies in four superhard materials, with mirror-polished bores and tight diameter tolerances.

  • Tungsten carbide — maximum impact & wear resistance
  • Best value for coarse and medium wire, rods & pipes
  • Ideal for steel, stainless steel, bar and tube drawing
  • Robust stainless-steel casings, CNC-machined
  • Polycrystalline diamond — the industry workhorse
  • Long service life with uniform crystal structure
  • Typical bore range Ø 0.02 – 20 mm, customizable
  • Copper, aluminium, stainless & alloy wire drawing
  • Natural diamond — finest surface finish available
  • For fine & ultra-fine wire: gold, silver, copper, tungsten
  • Typical bore range Ø 0.015 – 1.20 mm
  • Mirror polish for superior wire surface quality
  • CVD diamond — 100% pure diamond material
  • Excellent thermal stability and consistent wear
  • Cost-effective alternative to natural diamond
  • Medium-fine wire and demanding continuous lines

* Typical ranges shown — all dies are made to your wire specification.

Request die quotation →

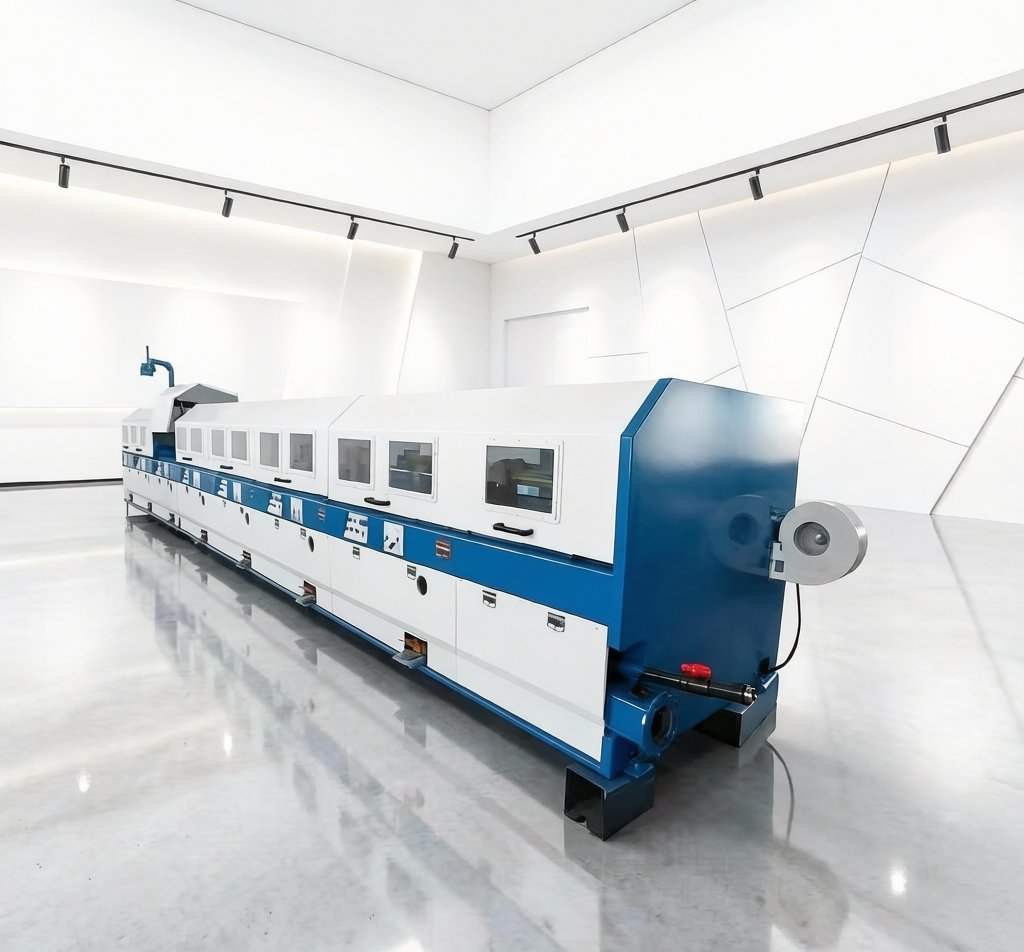

Straight-line wire drawing machine line with nine capstan drafts for high carbon steel wire Single Machines → Turnkey Lines
Wire Drawing Machines

Drawing Machines & Complete Lines

Our core line: straight-line wire drawing machines for high-carbon steel wire, typically built with nine drawing drafts in one straight line. Also available: pulley (accumulating), wet-drawing and inverted vertical machines — plus pay-offs, take-ups, descalers, pointing machines, butt welders and annealers for a complete plant.

  • Straight-line dry drawing machines — typically 9 drafts
  • Engineered for high-carbon steel wire (82B, 72A and similar grades)
  • Inverter-controlled tension for stable, slip-free drawing
  • Wet-drawing machines for fine and ultra-fine wire
  • Pay-off, take-up, descaling & butt welding equipment
  • Layout planning and installation guidance available
Request machine proposal →

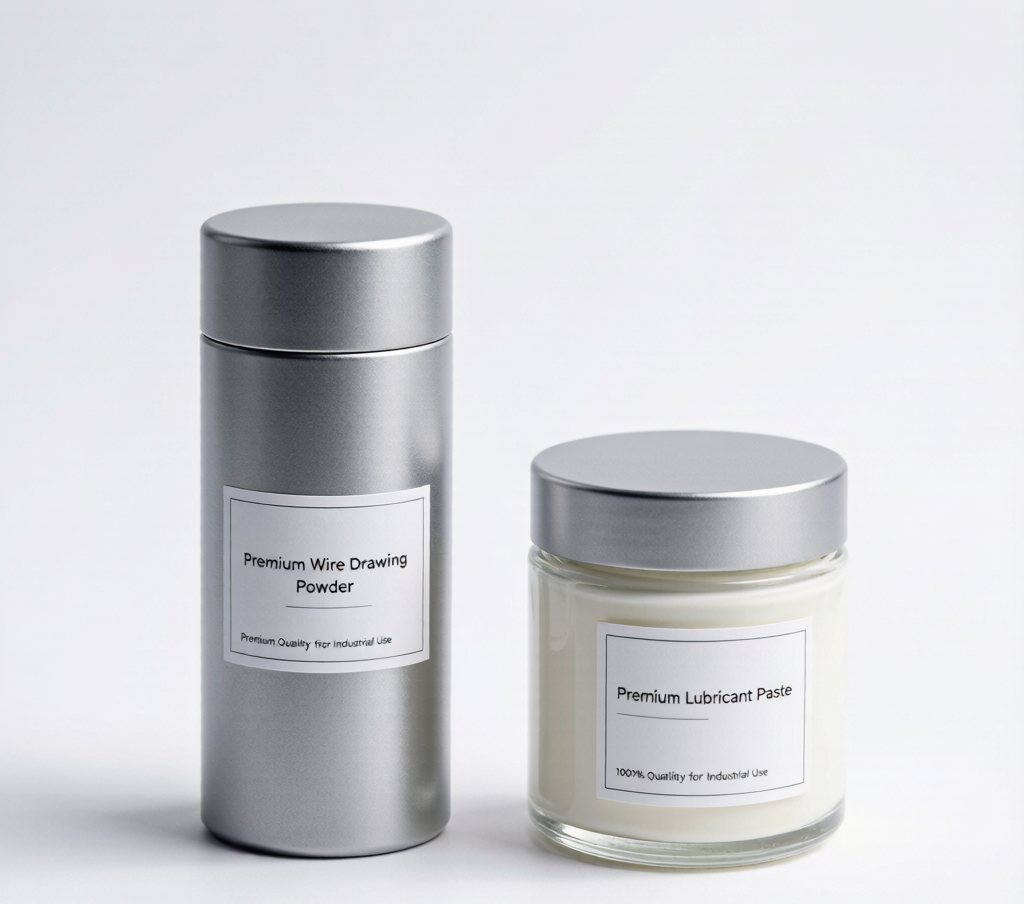

Wire drawing powder and lubricant paste containers Dry Drawing Lubricants
Drawing Compounds

Wire Drawing Powder & Lubricants

High-performance dry drawing powders and lubricant pastes formulated for stable lubrication films, lower drawing temperature and longer die life — with a clean, bright wire surface after drawing.

  • Grades for low-carbon & high-carbon steel wire
  • Formulas for stainless steel, copper and aluminium
  • Excellent adhesion, low dust, easy residue removal
  • Consistent batches, export-grade packaging
Request powder datasheet →
03 Manufacturing

From carbide blank to mirror bore

Every die passes through five controlled stages before it reaches your line.

01

Case Machining

Stainless-steel casings CNC-turned to print, ready for blank setting.

02

Blank Setting

TC, PCD, ND or CVD blanks selected and set for the wire specification.

03

Laser Drilling

Precise bore positioning and concentricity at the diamond core.

04

Shaping & Polishing

Ultrasonic shaping of compression and bearing zones, then mirror polish.

05

Inspection

100% optical measurement of bore profile before export packing.

Custom & Shaped Dies

Hexagonal, rectangular, stranded and special-profile dies made to your drawing.

Die Rework & Recutting

Repolishing and recutting services that restore geometry and extend die life.

OEM / ODM

Your branding, casing types, packing and documentation — produced to spec.

Export Support

Shipment from Shanghai / Ningbo ports with full export documentation.

04 Applications

Where our tools go to work

Our dies, machines and compounds serve wire & cable producers across industries worldwide.

Copper & Copper Alloy Wire

Aluminium & Alloy Wire

Low / High Carbon Steel Wire

Stainless Steel Wire

Welding Wire (CO₂ / SAW)

Enamelled & Magnet Wire

Wire Rope & Stranding

Pipe, Tube & Bar Drawing

Nail & Fastener Wire

Mattress Spring Wire

+ Galvanized wire · Prestressed concrete wire · Fencing & mesh wire · Brazing & filler wire

05 Quality Control

Every die measured.
Every batch recorded.

  • 100% bore inspectionDiameter, tolerance and roundness checked on every finished die.
  • Optical profile measurementProfile projector and microscope verification of reduction and bearing zones.
  • Material & hardness controlTC casings and diamond blanks verified before setting.
  • Surface finish to mirror standardRoughness verified for bright, scratch-free wire surface.
  • Export-grade packingFoam-sealed, serial-numbered boxes with full documentation.

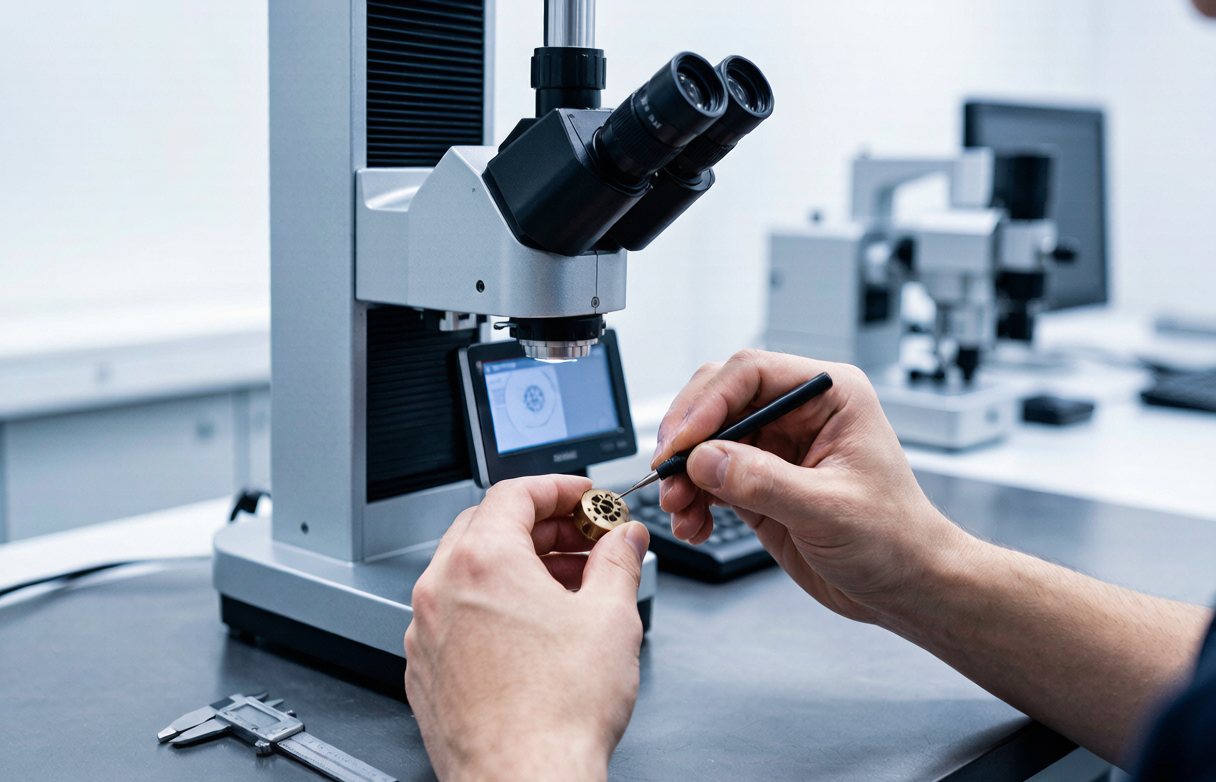

Optical inspection of a wire drawing die in the metrology lab
QC Passed · Serial Traced
06 Contact

Tell us about your wire.

Send us your wire material, inlet and outlet sizes — our engineers will recommend the right die, machine or compound and quote within 24 hours on working days.

Address

No.301 Jincheng East Road, Xinwu District,
Wuxi 214000, Jiangsu, China

Phone / WhatsApp

+86 137 0618 5457Call / WhatsApp · Mon – Sat, 8:30 – 17:30 (GMT+8)

Email

sales@femjx.comQuotes & technical support · replies within 24h

Export Markets

Middle East · Africa · Southeast Asia · South AsiaShipping via Shanghai & Ningbo ports
